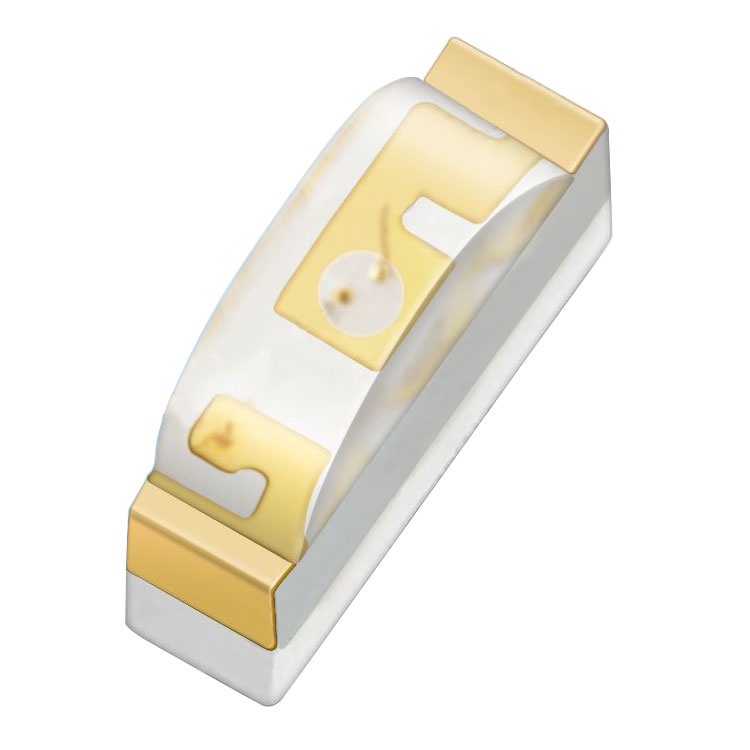

0802 side-emitting monochrome LED lamp beads

Category：Side Emission

L/W/H: 2.0x0.5x0.96mm & 2.1x1.0x0.6mm CT: 8300-12500K VF: 2.8-3.3v IV: 300-550mcd

售后QQ：
售后QQ：

Hotline：138 0982 8229

Request Samples For Free

Consulting Quote

Details

FEATURES

1、Low heat,high brightness
2、Average light-decay<2% in 3000 hr
3、Instant lighting up(less than 100 ns)
4、Excellent electrostatic protection and RoSH compliant

APPLICATIONS

1、Indicator,Backlight
2、3C Products(Computer、Communication and Consumer Electronic)
3、AI,Internet of things,Smart wearer

TECHNICAL PARAMETERS

Model	Color	Wavelength （nm）	Forward Voltage @20mA		Brightness（mcd）@20mA		Beam Angle
Model	Color	Wavelength （nm）	Min.	Max.	Min.	Max.	2θ1/2°
FT-0802URAC1UDA		617-625	1.9	2.2	70	150	120
FT-0802SEAC1UDA		600-610	1.9	2.3	70	150	120
FT-0802UYAC1UDA		586-592	1.9	2.3	70	150	120
FT-0802YGAC1UDA		566-572	1.9	2.2	25	50	120
FT-0802VGAC1UDA		524-532	2.8	3.1	150	300	120
FT-0802QBAC1UDA		462-472	2.8	3.1	30	70	120
FT-0802CWAY1UDA		8300K-12500K	2.8	3.3	300	550	120
