Single / self-flashi
  • 0807 self-flashing RGB LED lamp beads

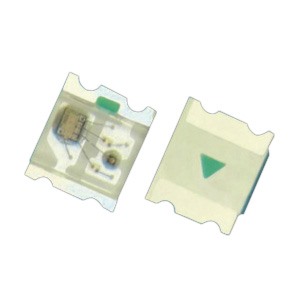

0807 self-flashing RGB LED lamp beads

Category:Single / self-flashing LED

L/W/H: 2.0x1.8x0.8mm & 1.6x0.8x0.4mm WL: R:620-625nm G:520-525nm B:465-470nm VF: RGB:2.0-3.5v IV: R:70-150mcd G:400-600mcd B:150-300mcd

  • 售后QQ: 点击这里给我发消息
  • 售后QQ: 点击这里给我发消息
Hotline:138 0982 8229
Details

FEATURES

1、Low heat,high brightness
2、Average light-decay<2% in 3000 hr
3、Instant lighting up(less than 100 ns)
4、Excellent electrostatic protection and RoSH compliant

APPLICATIONS

1、Indicator,Backlight
2、3C Products(Computer、Communication and Consumer Electronic)
3、AI,Internet of things,Smart wearer

TECHNICAL PARAMETERS

Model Color Wavelength
(nm)
Forward Voltage @20mA
Brightness(mcd)@20mA
Beam Angle
Min. Max. Min. Max. 2θ1/2°
FT-0807RGBC3ICA 自闪 620-625 2.0 3.5 70 150 120
520-525 2.0 3.5 400 600 120
465-470 2.0 3.5 150 300 120
